DD2201D-300H | Ordinary Bridge
DD2201D-300H is the flagship single-stage drive axle of Dongfeng Dana 300H series, designed for the extreme working conditions of heavy commercial vehicles.
The rated load is 22,000kg (the highest in the series) and the maximum torque is 55,000N-m (industry-leading).
It adopts 160×170mm casting axle casing and integrated cast steel support frame for wheel reducer (30% rigidity increase); through-wheel lubrication system significantly reduces the temperature and prolongs the life of gears; it is equipped with large-capacity air brake (φ410×220, 22.5″ rims) as standard, and 12.00R20 tires and 8.5V-20 rims, which can satisfy the harsh demands of mining and overloading transportation.
DD2201D-300H Product Features
Strong load-bearing capacity and long gear fatigue life;
Through-lubrication system at the wheel ends reduces temperatures and extends the life of wheel-end gears and bearings;
The wheel-end reducer support frame utilizes a one-piece cast steel structure, enhancing overall wheel-end rigidity;
High-capacity, quick-change brakes and high-performance brake drums provide enhanced braking performance;
Optional high-performance oil seals and maintenance-free hub units meet the requirements of high-grade commercial vehicles.
Technical Specifications
| Platform: | DD2201D – 300H |
| Rated Load (kg): | 22000 |
| Axle Housing Type: | Casting |
| Axle Housing Cross Section (mm): | 160 × 170 |

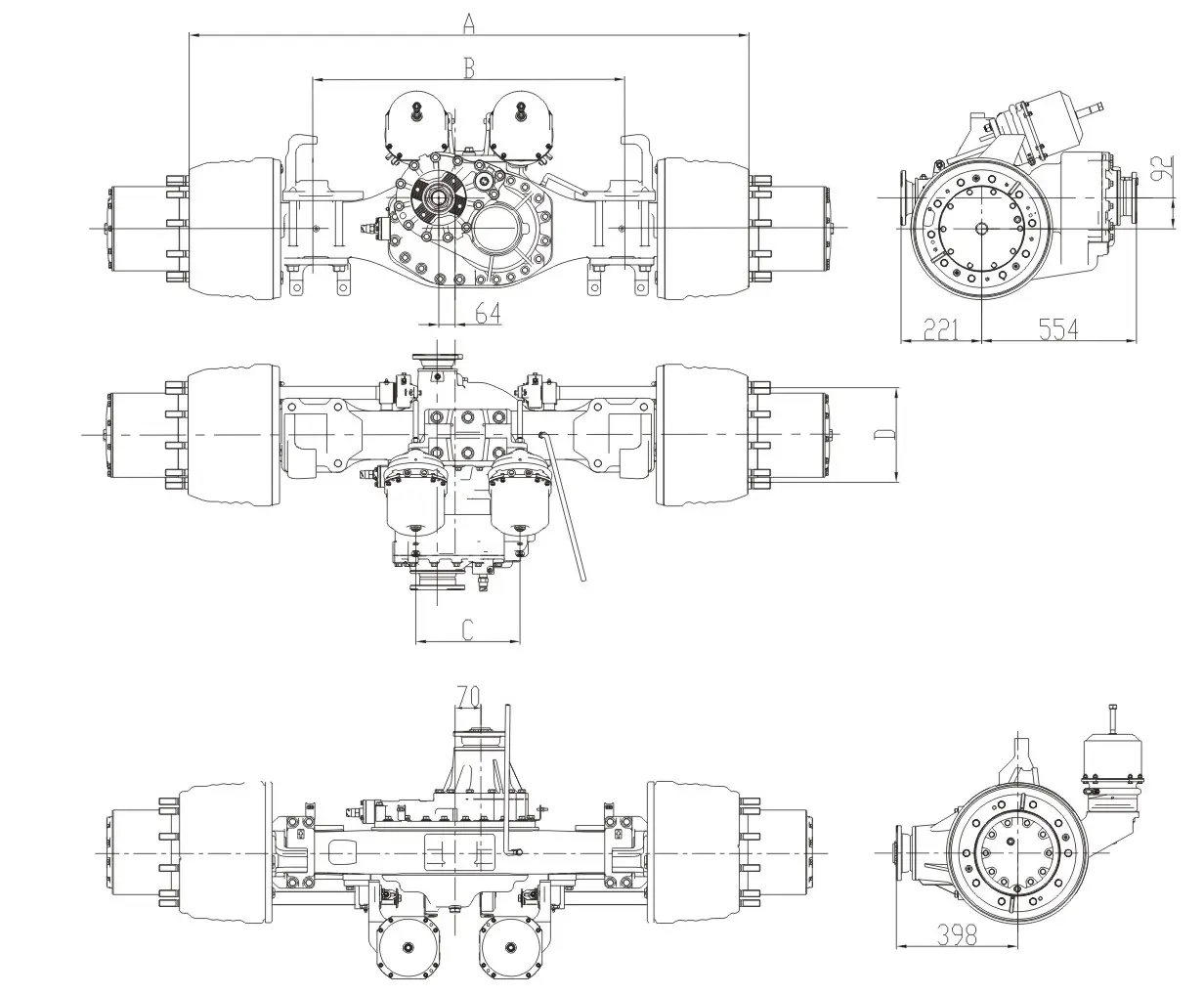

| Rim Mounting Distance A (mm): | 1880 |
| Spring Distance B (mm): | 1026 – 1045 |
| Maximum Torque (N·m): | 55000 |
| Ratio Series: | 4.77 – 7.63 |
| Brake Type: | Air Brake |
| Brake Specifications: | φ410×220、22.5″ |
| Cylinder Center Distance C (mm): | 338-348 |
| Applicable Rim: | 8.5V-20 |
| Applicable Tire: | 12.00R20 |
| Wheel Bolt Circle D (mm): | φ335 |
| Wheel Bolts: | 10-M22×1.5 |
| Optional Configurations: | Maintenance-Free Hub Unit |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T ,L/C |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 114 mm bore and 145 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 270 HP to 400 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
All Wheel Drive Off-road Chassis
Dongfeng Special Vehicle's all-wheel-drive off-road chassis series, developed based on military technology platforms, supports 4×4/6×6 drive configurations and delivers exceptional cross-country capability, high reliability, and strong environmental adaptability. DuraMac provides customized off-road solutions, with products widely applied in high-altitude rescue, wilderness exploration, special transport, and military applications, meeting the demands of both domestic and international specialty vehicle markets.
Medium & Heavy-duty Truck
DuraMac offers a full range of Dongfeng solutions for medium-to-heavy-duty trucks, covering diesel, pure electric, and hydrogen fuel cell powertrains. Its pure electric trucks feature high-energy-density batteries and electric drive systems with dual-gun fast charging capability, ensuring high operational efficiency. Hydrogen-powered heavy-duty trucks are equipped with an intelligent VCU control system and offer multiple power variants. All products utilize high-strength chassis and IP68-rated electrical systems, meeting diverse operational demands across engineering transport, port logistics, and urban distribution.
| Platform | Rated Load (kg) | Axle Housing Section (mm) | Rim Mounting Distance A (mm) | Spring Distance B (mm) | Maximum Torque (N·m) | Speed Ratio Series |
| DD2201D-300H | 22000 | 160×170 | 1880 | 1026 – 1045 | 55000 | 4.77 – 7.63 |
| DF1601D-300H | 16000 | 160×170 | 1880 | 1026 – 1045 | 50000 | 4.77 – 7.63 |
| DF2601TD-300H | 13000×2 | 135×150 | 1870、1886 | 1045 | 45000×2 | 4.21 – 6.71 |
| DF4401TD-300H | 22000×2 | 160×170 | 1880 | 1026 – 1045 | 50000×2 | 4.77 – 7.63 |
| DF5001TD-300H | 25000×2 | 170×176 | 1880 | 1045 | 55000×2 | 4.77 – 5.92 |
| ——END—— | ||||||
Basic information of truck ordinary bridge | |||
| Maximum Torque (N·m) | 55000 | Speed Ratio Series | 4.77 – 7.63 |
| Brake Type | Air Brake | Brake Specification | φ410×220, 22.5″ |
| Air Chamber Center Distance C (mm) | 328 – 348 | Adapted Rim | 8.5V – 20 |
| Adapted Tire | 12.00R20 | Wheel Bolt Distribution Circle D (mm) | φ335 |
| Wheel Bolt | 10 – M22×1.5 | Optional Configuration | Maintenance – free Hub Unit |
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
