DD391S | Steering axle

DD391S is F3.9 series high-performance I-beam steering axle with a rated load of 3900kg (next highest in the same series).

It is equipped with large-sized air brake system (φ400×130 brake drum, 19.5° rim) as standard, with fixed wheelbase of 2233mm to optimize the space layout, and a rim mounting distance of 1844mm for precise fitment.

The center distance of the main pin is 1662mm to strengthen the steering rigidity, with 6.25×22.5 rims and 295/80R22.5 wide base tires (ply reinforcement).

The steering angle of the outer wheel is up to 41° (the best in the same platform), and the air chamber interface is compatible with NPT1/4/Z1/4/M16×1.5 standards, which meets the demand for high stability and adaptability to complex working conditions of heavy-duty commercial vehicles.

DD391S Product Features

  • Heavy Load Upgrade: Flange-forged I-beam technology with load-bearing capacity ranging from 3.6 to 4.5 tons, suitable for heavy-duty scenarios such as mining and engineering.

  • Efficient Braking: Standard equipped with large Ø430mm air brake calipers, with optional ABS and automatic brake gap adjusters for fast braking response and low heat fade.

  • Structure Reinforcement: Wider wheelbase (1820-2020mm), reinforced axle housing + tapered roller bearings, enhancing torsional resistance and durability.

  • Intelligent Maintenance: Supports central lubrication systems (F4.5 series), extending maintenance intervals; optimized sealing of key components reduces failure rates.

Technical Specifications

Category:Steering axle
Platform:DD391S
Basic Structure:I – Beam
Rated Load (kg):3900
Brake Structure/Specifications:Air brake/φ400×130、19.5″
Maximum External Width A (mm):2233
Rim Installation Distance B (mm):1844
Kingpin Center Distance C (mm):1662
Spring Distance D (mm):820 – 851
Front Axle Drop:100 + 21
Kingpin Inclination/Wheel Camber:7° / 1°
Inner Wheel Steering Angle/Outer Wheel Steering Angle:41°
Rim:6.25×22.5
Tire:295/80R22.5
Wheel Bolts:8 – M22×1.5
Wheel Bolt Circle E (mm):φ275
Wheel Toe (mm):2 – 4
Air Chamber Interface Dimensions:NP1/4 、Z1/4 、M1.6 × 1.5
Lead Time:15 – 30 Working Days
Payment Terms:T/T, L/C

coming soon

coming soon

coming soon

Model

Rated Load (kg)

Brake Structure Form/Specification

Maximum Overall Width A (mm)

Rim

Tire

Wheel Bolt

DD391S3900Air brake/φ400×130、 19.5″22336.25×22.5295/80R22.58 – M22×1.5
DF451S4500Air brake/φ400×130、 19.5″2220 – 23427.50×19.5245/70R19.58 – M20×1.5
DF361S3600Air brake/φ360×130、 φ400×130、19.5″2220 – 23427.50×19.5245/70R19.58 – M20×1.5
——END——

Basic information of truck steering axle

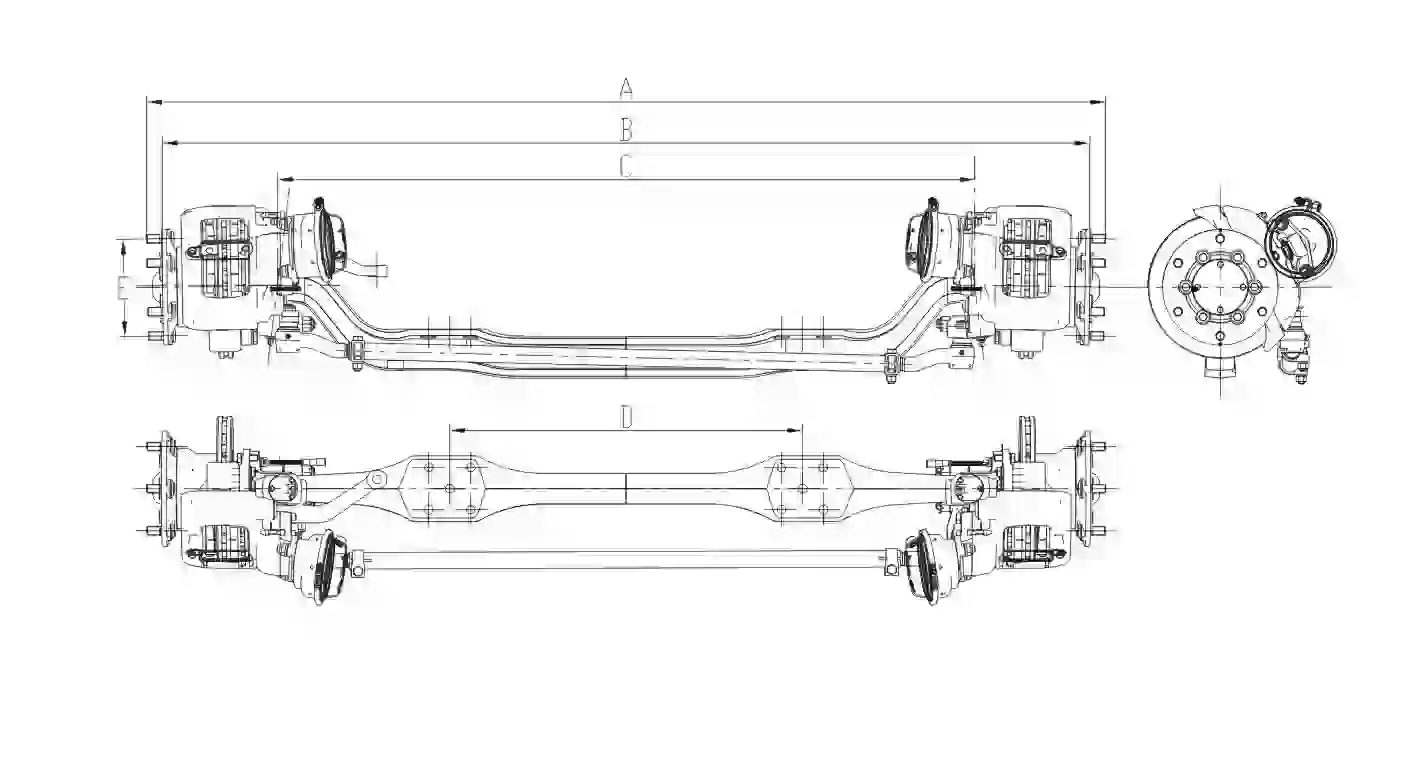

CategorySteering AxleBasic Structure FormI – beam
Rim Mounting Distance B (mm)1844Kingpin Center Distance C (mm)1662
Spring Distance D (mm)820 – 851Front Axle Drop (mm)100 + 21
Kingpin Inclination Angle/Wheel Camber Angle7°/1°Inner Wheel Steering Angle/Outer Wheel Steering Angle41°
Wheel Bolt Distribution Circle E (mm)φ275Wheel Toe – in (mm)2-4
Air Chamber Interface SizeNPT1/4、 Z1/4、 M16×1.5
——END——
