DF0302D-285 | Ordinary Bridge
DF0302D-285 is one of the core products of Dongfeng Dana’s D285 series of lightweight drive axles, which is specially designed for the market of light trucks with a rated load of 3000kg.
It inherits American Dana’s high power density technology gene and combines with localized independent research and development to achieve a lightweight structure and high reliability with a punch-welded axle housing.
The fatigue life of the axle casing far exceeds the national standard and can reach more than 1.1 million times.
Suitable for GVW 4-6 tons models, it adopts φ300×75, 16″ oil brake, matched with 5.5J×16 rims and 7.00-R16 tires, with wheel bolts of 5-M18×1.5. The design takes into account the high performance and the convenience of arrangement, which is a powerful driving solution for 4-6 ton trucks.
DF0302D-285 Product Features
The axle housing features a lightweight, serialized design, facilitating vehicle layout and compatibility with multiple models.
The axle housing fatigue life averages over 1.1 million cycles at 2.5 times full load, far exceeding national standards.
The median fatigue life of the bevel gear gantry ranges from a minimum of 950,000 cycles to a maximum of 1.35 million cycles.
Technical Specifications
| Platform: | DF0302D-285 |
| Rated Load (kg): | 3000 |
| Axle Housing: | Stamped and Welded |
| Axle Housing Cross-section (mm): | 102×102 |

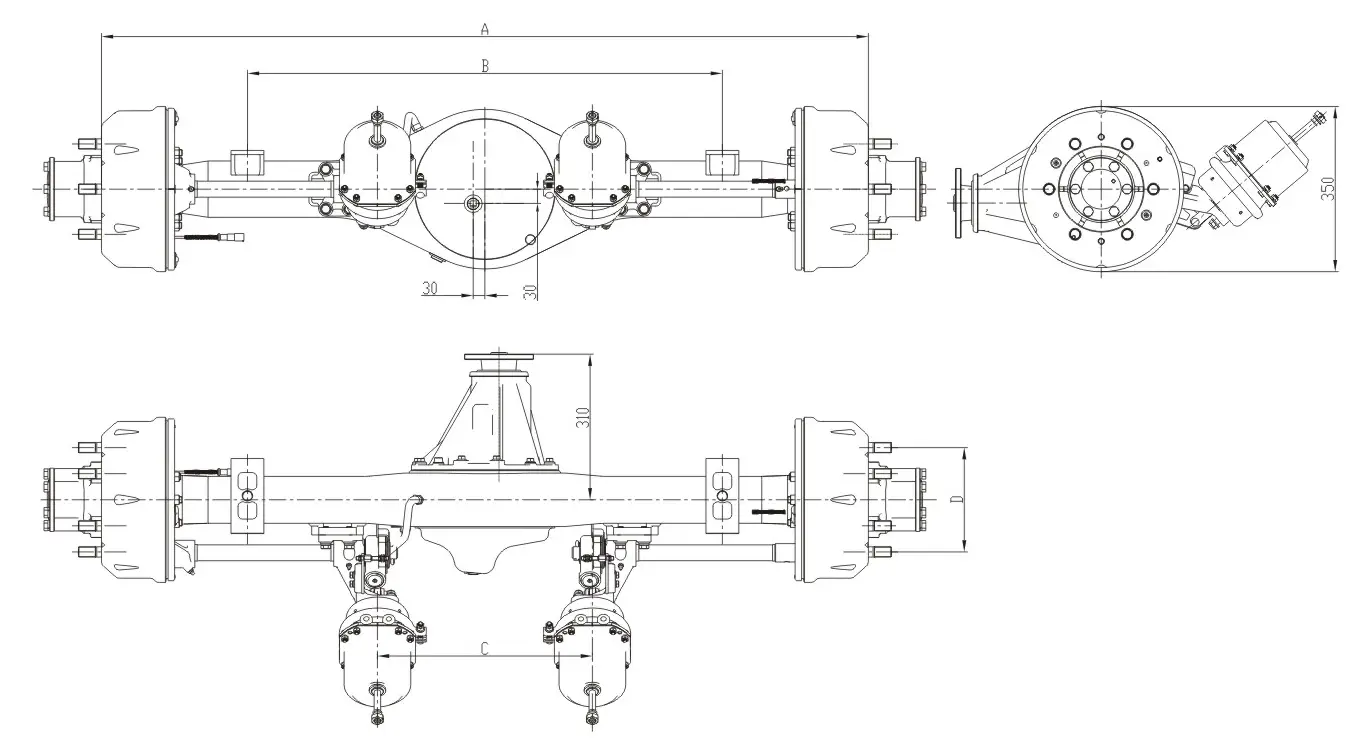

| Rim Mounting Distance A (mm): | 1533-1760 |
| Spring Distance B (mm): | 830-1060 |
| Maximum Torque (N·m): | 10000 |
| Speed Ratio: | 4.33-6.14 |
| Brake Type: | Oil Brake |
| Brake Specifications: | φ300×75、φ320×100、 16″ |
| Air Chamber Center Distance C (mm): | / |
| Adapted Wheel Rim: | 6.75×17.5 |
| Adapted Tire: | 7.50-R17.5 |
| Wheel Bolt Circumference D (mm): | φ203.2 |
| Wheel Bolts: | 5-M18×1.5 |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T ,L/C |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 114 mm bore and 145 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 270 HP to 400 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
All Wheel Drive Off-road Chassis
Dongfeng Special Vehicle's all-wheel-drive off-road chassis series, developed based on military technology platforms, supports 4×4/6×6 drive configurations and delivers exceptional cross-country capability, high reliability, and strong environmental adaptability. DuraMac provides customized off-road solutions, with products widely applied in high-altitude rescue, wilderness exploration, special transport, and military applications, meeting the demands of both domestic and international specialty vehicle markets.
Medium & Heavy-duty Truck
DuraMac offers a full range of Dongfeng solutions for medium-to-heavy-duty trucks, covering diesel, pure electric, and hydrogen fuel cell powertrains. Its pure electric trucks feature high-energy-density batteries and electric drive systems with dual-gun fast charging capability, ensuring high operational efficiency. Hydrogen-powered heavy-duty trucks are equipped with an intelligent VCU control system and offer multiple power variants. All products utilize high-strength chassis and IP68-rated electrical systems, meeting diverse operational demands across engineering transport, port logistics, and urban distribution.
Model | Rated Load (kg) | Axle Housing Section (mm) | Rim Mounting Distance A (mm) | Spring Distance B (mm) | Maximum Torque (N·m) | Speed Ratio Series |
| DF0302D-285 | 3000 | 102×102 | 1533-1760 | 830-1060 | 10000 | 4.33 – 6.14 |
| DF0402D-285 | 4000 | 102×102 | 1582.5-1673 | 892-952 | 10000 | 4.33 – 6.14 |
| DF0502D-285 | 5000 | 102×110 | 1525-1688.5 | 880-968 | 10000 | 4.33 – 6.14 |
| ——END—— | ||||||
Basic information of truck ordinary bridge | |||
| Model | DF0302D-285 | Axle Housing Type | Stamped and Welded |
| Brake Type | Oil Brake | Brake Specification | φ300×75、φ320×100、 16″ |
| Air Chamber Center Distance C (mm) | / | Adapted Wheel Rim | 6.75×17.5 |
| Adapted Tire | 7.50-R17.5 | Wheel Bolt Distribution Circle D (mm) | φ203.2 |
| Wheel Bolts | 5 – M18×1.5 | ||
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
