Rated load (kg): 5000
Axle housing cross-section(mm):102×110
Rim mounting distance A (mm): 1586
Spring distance B (mm): 952
Maximum torque (N·m): 10000
Speed ratio range: 4.33-6.14
Dana Truck Standard Axle
The truck standard axle produced by Dongfeng Dana Co., Ltd. is designed for medium and heavy-duty trucks, using high-strength materials and precision craftsmanship.
With excellent load-bearing capacity and stability, it ensures smooth operation of the vehicle under various working conditions.
This product is widely used in transportation, engineering, and other industries, effectively distributing the vehicle’s weight and enhancing performance and safety. Whether for urban distribution or long-distance transport, the standard axle provides stable support and adapts to different road conditions, ensuring efficient transportation.Whether for truck or buses, no matter what product you need, we will provide you with the most satisfactory.
Advantages of Truck Standard Axle
- High Reliability and Load Capacity: Utilizing I-beam end face cross-forging technology, the axle housing fatigue life exceeds 1 million cycles (more than twice the national standard), and the bevel gear rack torque reaches 43,000 N·m with a life exceeding 850,000 cycles, suitable for heavy-duty applications.
- Efficient Braking and Heat Dissipation: Standard equipped with an external brake drum + heat dissipation holes/ribs design, ensuring smooth braking and rapid heat dissipation; optional electromagnetic retarder available to enhance safety on long downhill slopes.
- Lightweight and low fuel consumption: The entire axle features a lightweight design (over 60 kg lighter than competitors), a low gear ratio (as low as 2.69) combined with a forced lubrication pump, improving transmission efficiency and reducing fuel consumption by 10%.
- Long maintenance intervals: High cleanliness standards combined with optimized sealing extend maintenance intervals by 100%, reducing lifecycle costs by 30%.
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 114 mm bore and 145 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 270 HP to 400 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
All Wheel Drive Off-road Chassis
Dongfeng Special Vehicle's all-wheel-drive off-road chassis series, developed based on military technology platforms, supports 4×4/6×6 drive configurations and delivers exceptional cross-country capability, high reliability, and strong environmental adaptability. DuraMac provides customized off-road solutions, with products widely applied in high-altitude rescue, wilderness exploration, special transport, and military applications, meeting the demands of both domestic and international specialty vehicle markets.
Medium & Heavy-duty Truck
DuraMac offers a full range of Dongfeng solutions for medium-to-heavy-duty trucks, covering diesel, pure electric, and hydrogen fuel cell powertrains. Its pure electric trucks feature high-energy-density batteries and electric drive systems with dual-gun fast charging capability, ensuring high operational efficiency. Hydrogen-powered heavy-duty trucks are equipped with an intelligent VCU control system and offer multiple power variants. All products utilize high-strength chassis and IP68-rated electrical systems, meeting diverse operational demands across engineering transport, port logistics, and urban distribution.
D285 | 3000-5000kg | ||||||
D310 | 4200-6500kh | ||||||
D350 | 7000-9000kg | ||||||
D360 | 4000x2kg | ||||||
D385 | 7000-8000kg | ||||||
D400/TD400 | 10000-13000x2kg | ||||||
D416 | 9000kg | ||||||
D434/TD434 | 10000-10000x2kg | ||||||
D440/TD440 | 10000-13000x2kg | ||||||
D485/TD485 | 10000×2-16000x2kg | ||||||
D300/TD300 | 16000-25000x2kg | ||||||
Ordinary bridge Model Rated load /kg | 0 | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 |
Series
Model
Find Truck Standard axle by Series
Rated load (kg): 4000 Rated load (kg): 3000 DF0402D-285 | Ordinary Bridge
Axle housing cross-section (mm): 102×102.
Rim mounting distance A (mm): 1458-1650
Spring distance B (mm): 892-952
Maximum torque (N·m): 10000
Speed ratio range: 4.33-6.14
DF0302D-285 | Ordinary Bridge
Axle housing cross-section (mm): 102×102
Rim mounting distance A (mm): 1450
Spring distance B (mm): 1020
Maximum torque (N·m): 9000
Speed ratio range: 4.33-6.14
Rated load (kg): 6500 Rated load (kg): 5500 Rated load (kg): 4200
DF0651D-310 | Ordinary Bridge
Axle housing cross-section (mm): 110×120
Rim mounting distance A (mm): 1800
Spring distance B (mm): 1012
Maximum torque (N·m): 15000
Speed ratio range: 3.58-6.33 DF0551D-310 | Ordinary Bridge
Axle housing cross-section (mm): 110×120
Rim mounting distance A (mm): 1610-1683.5
Spring distance B (mm): 952-1012
Maximum torque (N·m): 15000
Speed ratio range: 3.58-6.33 DF0422D-310 | Ordinary Bridge
Axle housing cross-section (mm): 102×102
Rim mounting distance A (mm): 1530
Spring distance B (mm): 902
Maximum torque (N·m): 11000
Speed ratio range: 5.86
Rated load (kg): 9000 Rated load (kg): 8000 Rated load (kg): 7000
DF0901D-350 | Ordinary Bridge
Axle housing cross-section (mm) :135×150
Rim mounting distance A (mm):1778
Spring distance B (mm): 1030
Maximum torque (N·m):18000-20000
Speed ratio series : 2.44-6.17 DF0801D-350 | Ordinary Bridge
Axle housing cross-section (mm): 120×135
Rim mounting distance A (mm): 1698
Spring distance B (mm): 970
Maximum torque (N·m): 18000-20000
Speed ratio series : 2.44-6.17 DF0701D-350 | Ordinary Bridge
Axle housing cross-section (mm): 120×135
Rim mounting distance A (mm): 1698
Spring distance B (mm): 970
Maximum torque (N·m) :18000-20000
Speed ratio series: 2.44-6.17
Rated load (kg): 4000 x 2
DF0801TD-360 | Ordinary Bridge
Axle housing cross-section (mm): 116 x 116
Rim mounting distance A (mm): 1870
Spring distance B (mm): 1140
Maximum torque (N·m): 15000
Speed ratio series: 4.86
Rated load (kg): 8000 Rated load (kg): 7000
DF0801D-385 | Ordinary Bridge
Axle housing cross-section (mm): 120×135.
Rim mounting distance A (mm): 1680, 1800
Spring distance B (mm): 952-1040
Maximum torque (N·m): 18000
Speed ratio range: 4.10-6.83 DF0701D-385 | Ordinary Bridge
Axle housing cross-section (mm): 102×134,
Rim mounting distance A (mm): 1640-1840,
Spring distance B (mm): 952-1030
Maximum torque (N·m): 18000
Speed ratio range: 4.10-6.83
Rated load (kg): 13,000×2 Rated load (kg):10,000×2 Rated load (kg): 10,000
DD2601TD-400 | Ordinary Bridge
Axle housing cross-section (mm):135×150
Rim mounting distance A (mm): 1855
Spring distance B (mm):1040
Maximum torque (N·m): 30,000×2
Speed ratio series: 3.42-5.57 DD2001TD-400 | Ordinary Bridge
Axle housing cross-section (mm): 135×150,
Rim mounting distance A (mm):1855
Spring distance B (mm): 1040
Maximum torque (N·m): 30,000×2
Speed ratio series: 3.42-5.57 DD1001D-400 | Ordinary Bridge
Axle housing cross-section (mm): 135×150,
Rim mounting distance A (mm): 1804
Spring distance B (mm): 990
Maximum torque (N·m): 28,000
Speed ratio series: 2.44-5.57
DF0901D-416 | Ordinary Bridge
Rated load (kg): 9000
Axle housing cross-section (mm): 135×145
Rim mounting distance A (mm): 1800-1862
Spring spacing B (mm): 1012-1035
Maximum torque (N·m): 24000
Speed ratio range: 3.91-6.83
Rated load (kg): 10,000 x 2 Rated load (kg): 10,000

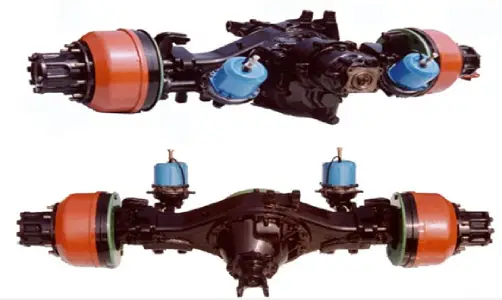

DF2001TD-434(Dual drive) | Ordinary Bridge
Axle housing cross-section (mm):158 x 158.
Rim mounting distance A (mm): 1750-1880
Spring distance B (mm): 940-1050
Maximum torque: 30,000 x 2
Speed ratio range: 3.91-6.83
DF1001D-434 | Ordinary Bridge
Axle housing cross-section (mm): 158×158, 135 x 150
Rim mounting distance A (mm): 1750-1860
Spring distance B (mm): 970-1040
Maximum torque: 30,000
Speed ratio range: 3.07-6.83
Rated load (kg): 13,000×2 Rated load (kg):10,000×2 Rated load (kg):13,000 Rated load (kg): 10,000

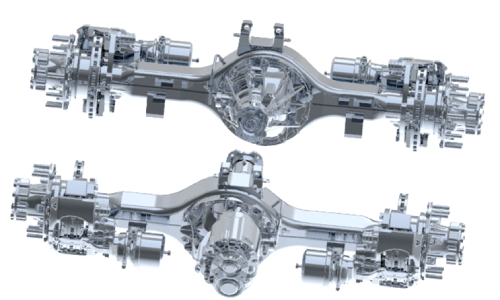

DF2601TD-440(Dual drive)|Ordinary Bridge
Axle housing cross-section
(mm):135×150
Rim mounting distance A (mm): 1860
Spring distance B (mm): 990-1040
Maximum torque (N·m): 35,000×2
Speed ratio range: 4.44-5.57 DF2001TD-440(Dual drive)|Ordinary Bridge
Axle housing cross-section (mm): 135×150
Rim mounting distance A (mm): 1860
Spring distance B (mm): 990-1040
Maximum torque (N·m): 35,000×2
Speed ratio range: 4.44-5.57

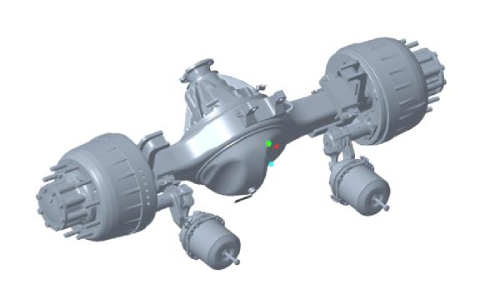

DD1301D-440 | Ordinary Bridge
Axle housing cross-section
(mm): 135×150
Rim mounting distance A (mm): 1860
Spring distance B (mm): 1030
Maximum torque (N·m): 35,000
Speed ratio series: 2.56-5.57 DD1101D-440 | Ordinary Bridge
Axle housing cross-section
(mm): 135×150
Rim mounting distance A (mm): 1860
Spring distance B (mm): 1030
Maximum torque (N·m): 35,000
Speed ratio series: 2.56-5.57
Rated load (kg): 16,000×2 Rated load (kg):13,000×2 Rated load (kg): 10,000×2 Rated load (kg): 16,000 Rated load (kg): 13,000
DF3201TD-485 | Ordinary Bridge
Axle housing cross-section (mm):160×176
Rim mounting distance A (mm): 1860
Spring distance B (mm): 1046
Maximum torque (N·m): 50,000×2
Speed ratio range: 3.91-6.33 DF2601TD-485 | Ordinary Bridge
Axle housing cross-section (mm): 135×150
Rim mounting distance A (mm): 1820-1860
Spring distance B (mm): 940-1030
Maximum torque (N·m):50,000×2
Speed ratio range: 3.91-6.33 DF2001TD-485 | Ordinary Bridge
Axle housing cross-section (mm): 135×150
Rim mounting distance A (mm): 1820-1860
Spring distance B (mm): 960-1030
Maximum torque (N·m): 50,000×2
Speed ratio range: 3.91-6.33
DF1602D-485 | Ordinary Bridge
Axle housing cross-section (mm): 160×176
Rim mounting distance A (mm): 1890
Spring distance B (mm): 1030
Maximum torque (N·m): 50,000
Speed ratio range: 3.91-6.33 DF1302D-485 | Ordinary Bridge
Axle housing cross-section (mm): 135×150
Rim mounting distance A (mm): 1820-1860
Spring distance B (mm): 930-1040
Maximum torque (N·m): 50,000
Speed ratio range: 3.91-6.33
Rated load (kg): 25000 × 2 Rated load (kg): 22000 × 2 Rated load (kg): 13,000×2 Rated load (kg): 22,000 Rated load (kg): 16,000
DF5001TD-300H | Ordinary Bridge
Axle housing cross-section (mm): 170 × 176
Rim mounting distance A (mm): 1880
Spring distance B (mm): 1045
Maximum torque (N·m): 55000 × 2
Speed ratio range: 4.77-5.92 DF4401TD-300H | Ordinary Bridge
Axle housing cross-section (mm): 160 × 170
Rim mounting distance A (mm): 1880
Spring distance B (mm): 1026-1045
Maximum torque (N·m): 50000 × 2
Speed ratio range: 4.77-7.63 DF2601TD-300H | Ordinary Bridge
Axle housing cross-section (mm): 135×150
Rim mounting distance A (mm): 1870、1886
Spring distance B (mm): 1045
Maximum torque (N·m): 45,000×2
Speed ratio range: 4.21-6.71
DD2201D-300H | Ordinary Bridge
Axle housing cross-section (mm): 160×170
Rim mounting distance A (mm): 1880
Spring distance B (mm): 1026-1045
Maximum torque (N·m): 55,000
Speed ratio range: 4.77-7.63 DF1601D-300H | Ordinary Bridge
Axle housing cross-section (mm): 160×170
Rim mounting distance A (mm): 1880
Spring distance B (mm): 1026-1045
Maximum torque (N·m): 50,000
Speed ratio range: 4.77-7.63
